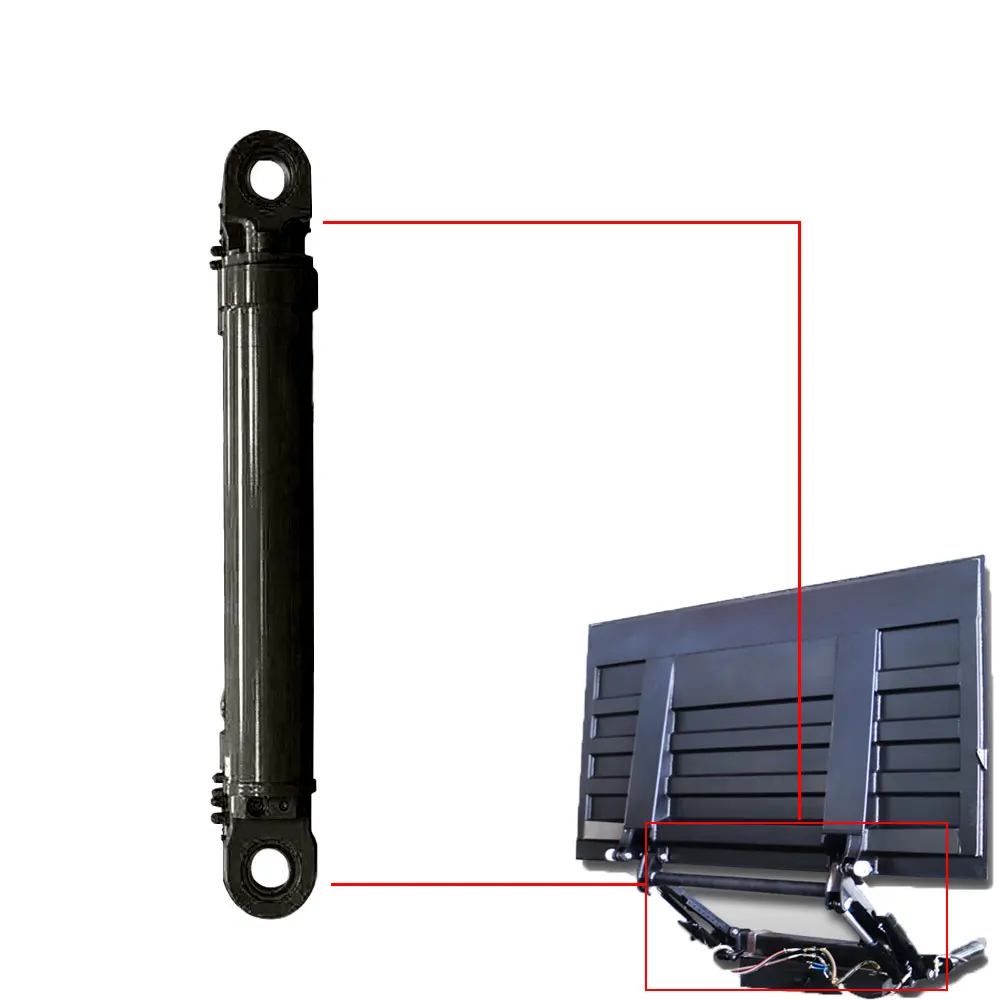

Hydraulic Cylinder For Automobile Hydraulic Lifting Tail Plate



Introducing our new Hydraulic Cylinder for Automobile Hydraulic Lifting Tail Plate. Designed to provide exceptional lifting capabilities for a wide variety of industries including manufacturing plants, machinery repair shops, food & beverage factories, farms, construction works, energy & mining.

Product Details

This hydraulic cylinder is a standard piston cylinder, powered by hydraulic force. It's made of robust steel, designed to withstand working temperatures of -20~80??C and working pressure of 7Mpa~31.5Mpa. It's available in various colors including black, yellow, and blue with customization options available.

The cylinder's core components include the piston, rod, cap, head, barrel, seals, mounts, and valves. It comes with a 1-year warranty and weighs 40 KG. After the warranty period, we offer video technical support for added convenience.

Technical Specifications

Here are the detailed technical specifications of the Hydraulic Cylinder:

Hydraulic Cylinder

Product Name HSG Series Hydraulic Cylinder
Work Pressure 7/14/16/21/31.5MPa 37.5/63MPa Can be Customized
Material Aluminum, Cast Iron, 45mnb Steel, Stainless Steel
Bore Size 40mm--320mm, Customizable
Shaft Diameter 20mm--220mm, Customizable
Stroke Length 30mm--14100mm, Customizable
Rod Surface Hardness HRC48-54
Paint Color Black, Yellow, Blue, Brown, Customizable
Mounting Earring, Flange, Clevis. Foot, Trunnion, Customizable
Warranty 1 Year

Unique Features and Advantages

  • Energy-efficient - Utilizes hydraulic power for optimal performance.
  • Highly efficient - Designed for maximum productivity and minimal downtime.
  • Safety - Built with safety in mind for various working conditions.

Working Principle

The hydraulic cylinder works on the principle of pressurized hydraulic fluid causing the piston to move and create mechanical force. This force is then used to lift, lower, or move heavy loads, providing a powerful solution for various lifting tasks.


Our hydraulic cylinder is widely used in many industries, particularly in heavy machinery and equipment such as automobiles. It's ideal for tasks that require a powerful lifting force.

Visit Our VR Factory

Interested in seeing how our hydraulic cylinders are made? Take a virtual tour of our factory by clicking here.

Hydraulic Cylinders and Power Units

Hydraulic cylinders and power units go hand in hand. Without a proper power unit, a hydraulic cylinder cannot function. We also provide power units for sale to ensure a complete hydraulic solution for our customers.

Why Choose Us?

We are an experienced supplier and manufacturer of forklift hydraulic cylinders in China. Our products include forklift lift hydraulic cylinders, forklift steering cylinders, forklift tilt cylinders and power units. We also welcome custom orders based on drawings or samples.

Our products are known for their superior quality and competitive pricing. And with customers from America, Canada, Australia, Germany, England and other European Countries, our reputation speaks for itself.

Take the next step and explore our Hydraulic Cylinder for Automobile Hydraulic Lifting Tail Plate today!

Forklift Hydraulic Cylinder Workshop


Q1: Can this hydraulic cylinder work under extreme temperatures?

A: Yes, our hydraulic cylinder is designed to work under temperatures ranging from -20??C to 80??C.

Q2: Do you offer customization options for the hydraulic cylinder?

A: Yes, we do. We offer customization options on colors and sizes based on your requirements.

Hydraulic Cylinder

Q3: What support is available after the warranty period?

A: After the warranty period, we offer video technical support for our customers.
